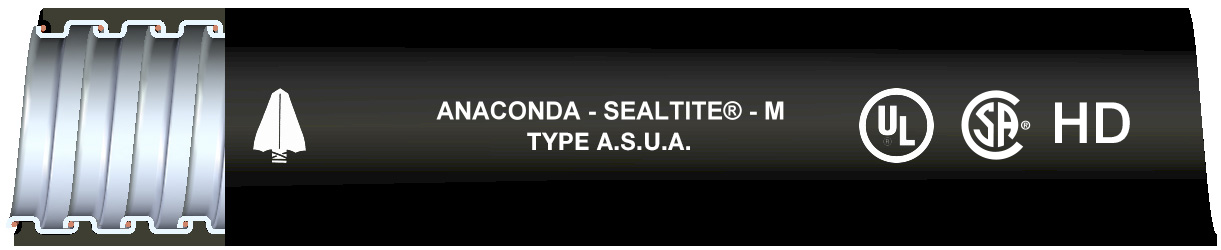

Sealtite ASUA-HD
AnacondaAnaconda is the brand name of our flexible conduits and matching Anaconda fittings. The Anaconda conduits are available in a wide variety of materials, diameters and can be with or without cover. SealtiteSealtite is the brand name of the type of conduit that is used to protect wires against different circumstances. ASUA-HD is a robust conduitA conduit is a gateway in which electrical wires or other items can pass through. with a galvanized steel core and a thick, smooth anti-static PVC cover. This conduit is UL listed and CSA Heavy Duty certified and is used to protect cables in hazardous areas where a risk of explosionSudden oxidation or decomposition substance concentrating in the air causing an explosion. exists. The anti-static cover provides a surface resistance of <109 Ohm according to Standard NEN-EN-IEC 600079-0, Section 26-13 thus preventing electrostatic chargeAn electrostatic charge is created when disconnecting non-conductive material from another (conductive or non-conductive) material after a close contact between both. from accumulating on the surface of the conduit cover and also sparks in the case of discharge by contact.
-
SpecificsPVC jacketed conduit with flexible galvanized steel core CSA Heavy Duty and UL approved
-
ConstructionGalvanized steel core, square lock profile with a integral copper grounding wire from size 3/8” to 1-1//4”, interlocked profile from size 1-1/2” till 2”, thick smooth, anti-static PVC cover.
-
ColourBlack
-
Temperature-40 ºC to +105 ºC (-40ºF to +221ºF), intermittent up to +120 ºC (+248ºF). Max. temperature according CSA is +75° C (+167ºF)
-
Applications
- Anti-static
- CSA Heavy Duty certified locations
- Not for use in oily environments
